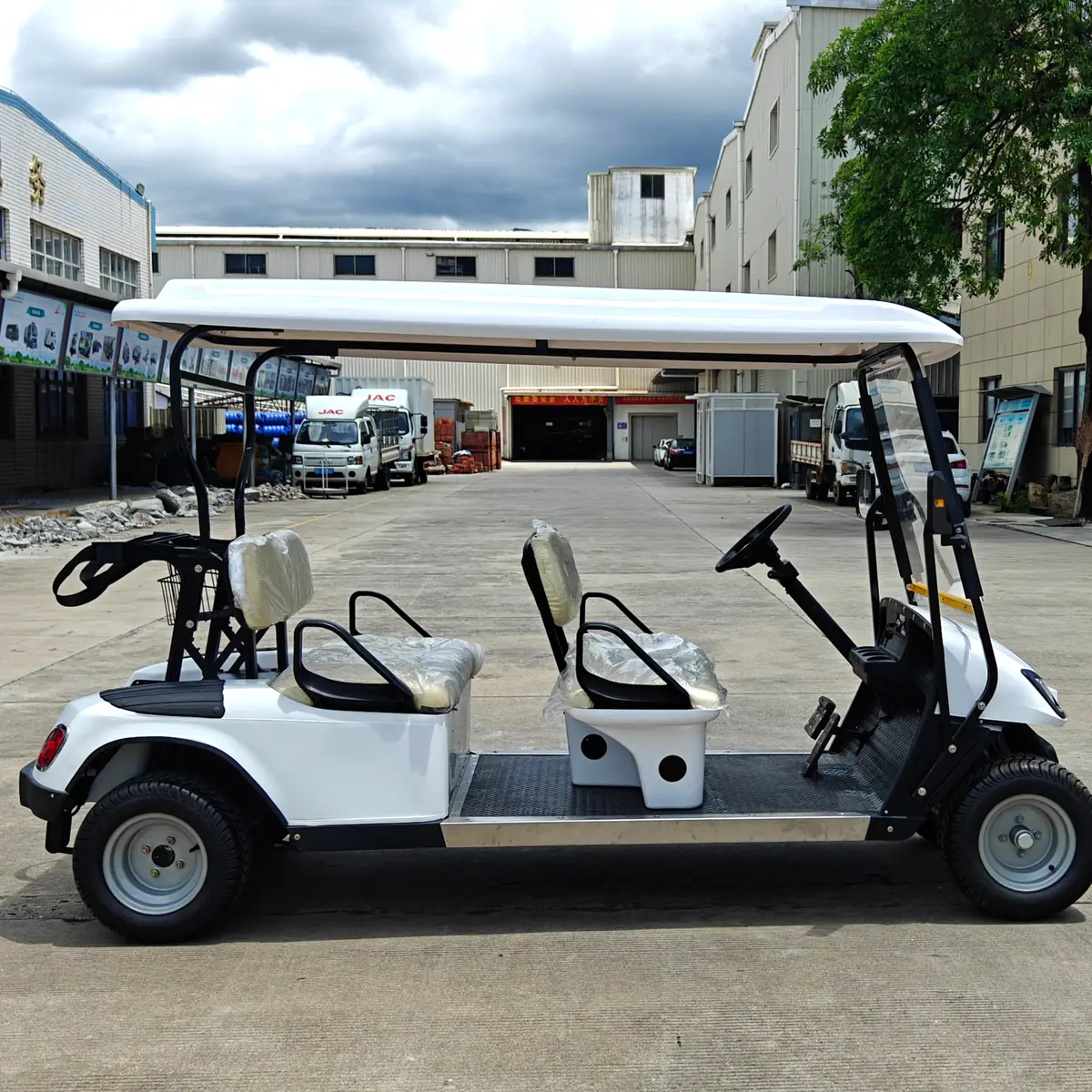

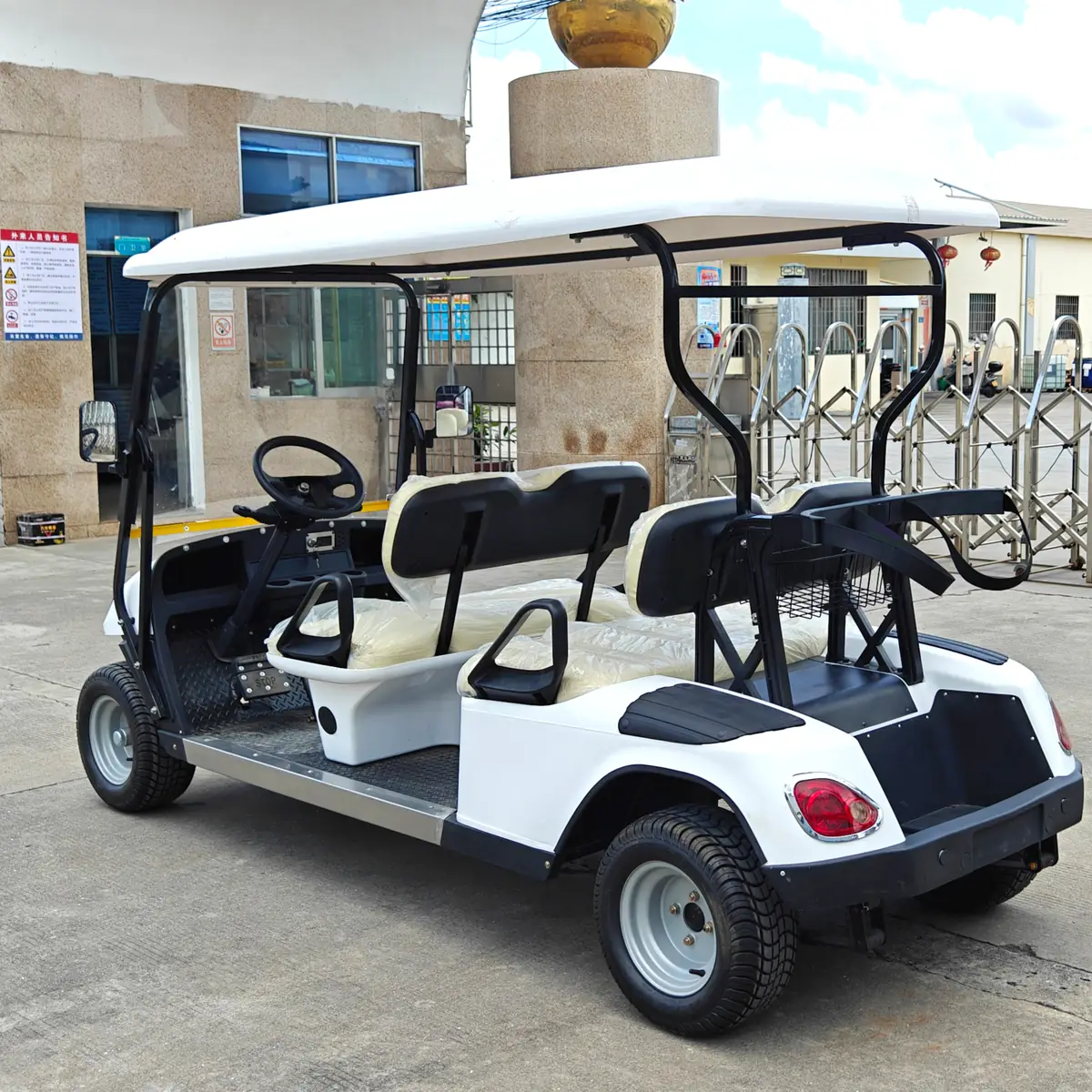

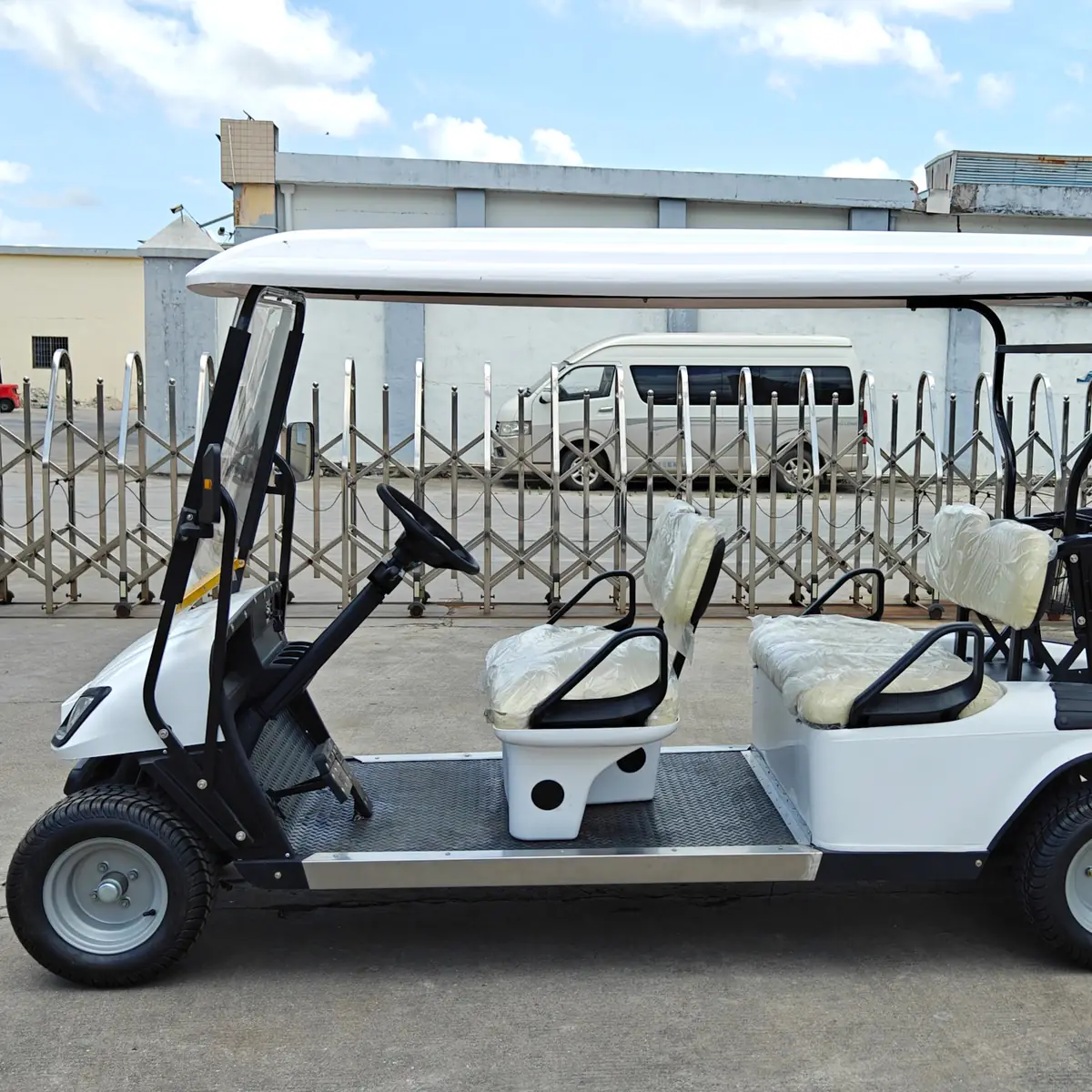

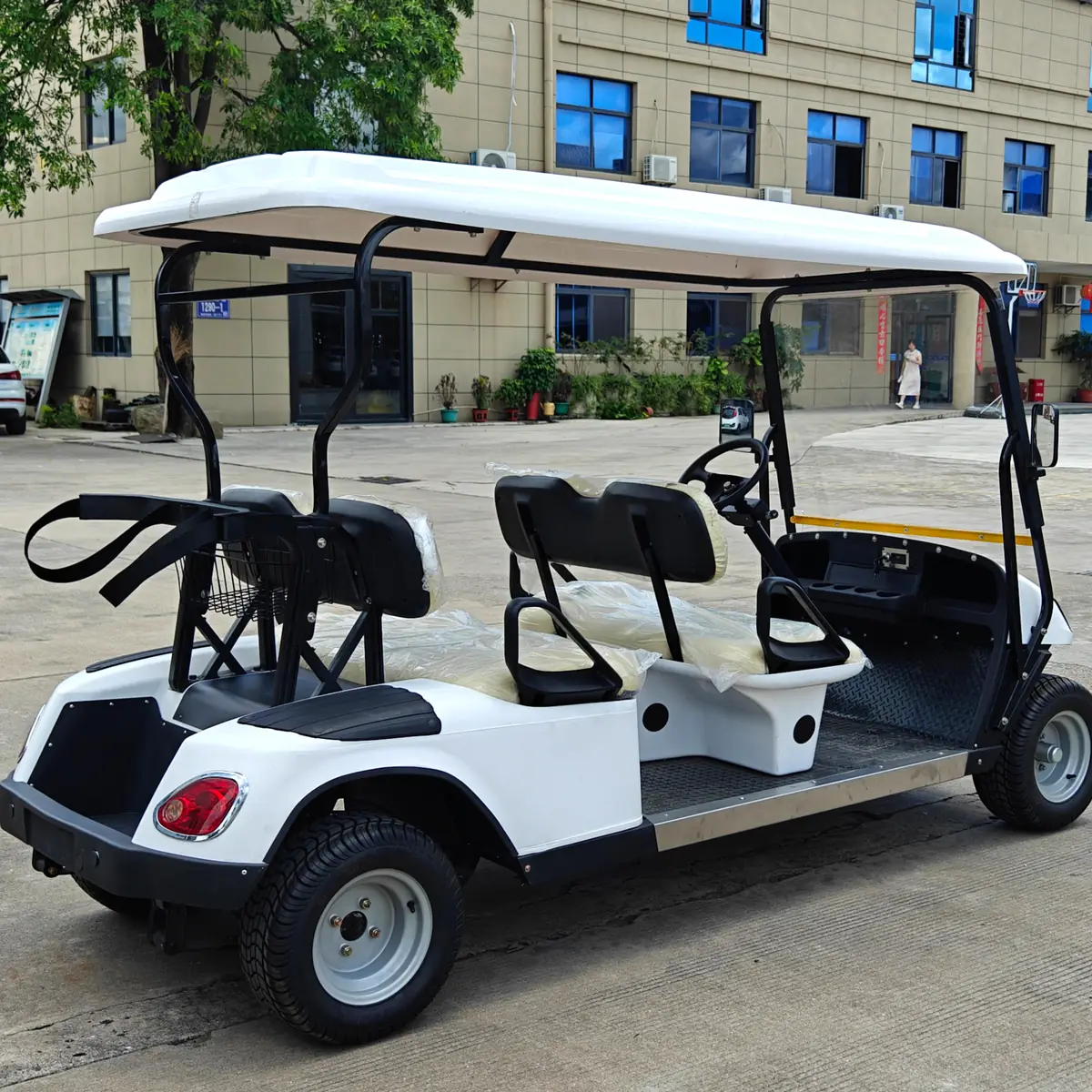

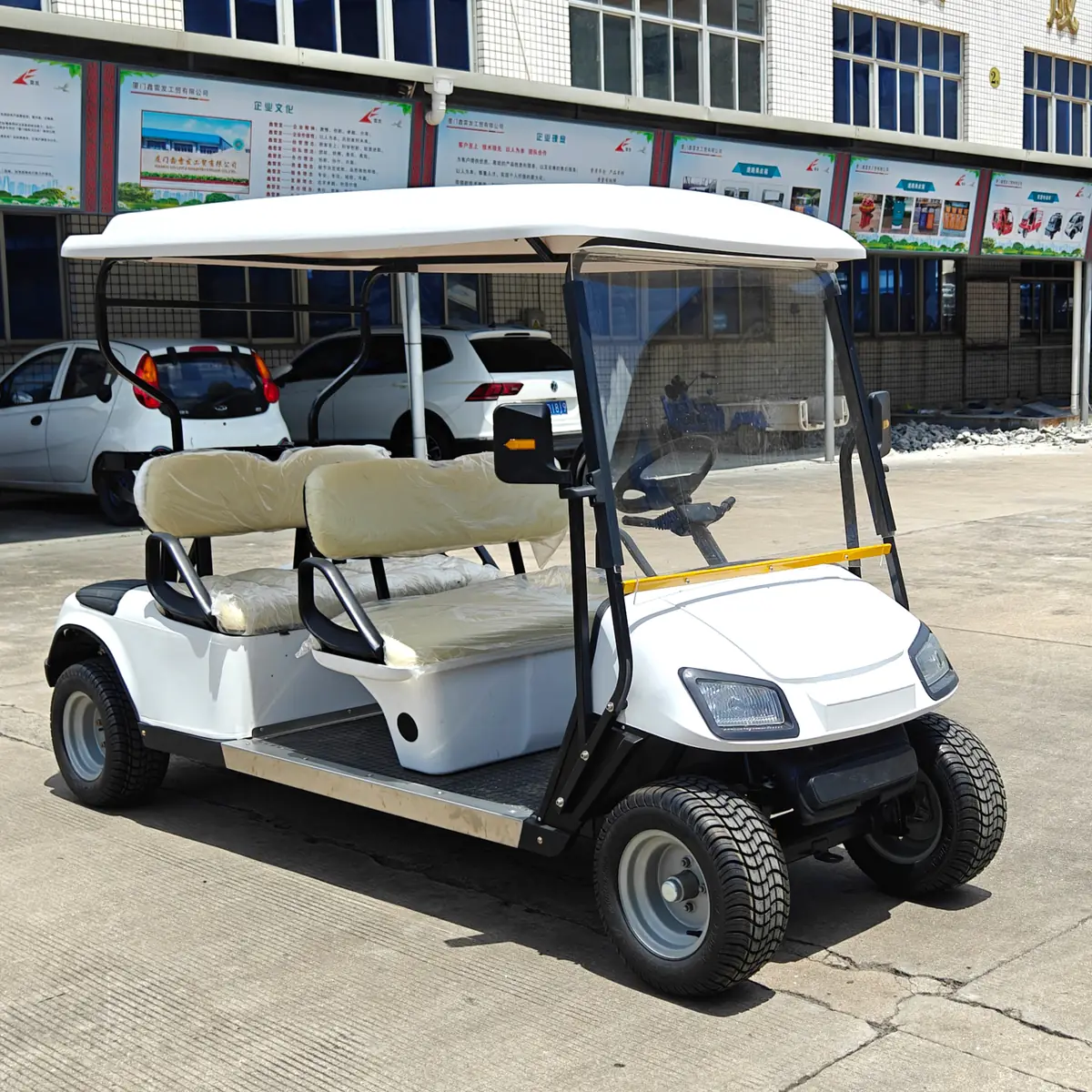

LF-GD404A Golf Cart (2 Rows, 4 Seats) Descriptions
Xiamen Xinleifa Industry & Trade Co., Ltd. was established on October 12, 2006, located at No. 1290 Xinwei North Road, Xiang ‘an District, Xiamen City, with a registered capital of RMB 32 million. The company has its own factory building covering an area of 40 mu and a building area of 40000 square meters.
LF-GD404A Golf Cart (2 Rows, 4 Seats) Details
 |
 |
 |
 |
Configuration Parameters
| System Classification | Subsystem | Specifications |
| ELECTRICAL SYSTEM | Electronic Control | 48V AC Controller |
| Battery | 48V/150AH Maintenance-Free Dry Battery (6 units of 8V batteries) | |
| Motor | AC 4KW/75A | |
| Charger | Intelligent On-board 25A Charger | |
| Charging Input Voltage | AC ≈ 220V | |
| Charging Time | 8-10 hours (at 80% depth of discharge) | |
| TECHNICAL PARAMETERS | Length × Width × Height | 3240×1105×1900mm ± 30 |
| Maximum Braking Distance (20km/h) | 4m | |
| Curb Weight | 560kg ± 30 | |
| Rated Passenger Capacity | 4 persons | |
| Total Vehicle Load | 300kg | |
| Maximum Travel Speed (Unloaded) | 28km/h | |
| Front/Rear Track Width | 870mm / 980mm | |
| Maximum Climbing Gradient | 25% | |
| Wheelbase | 2455mm ± 30 | |
| Minimum Turning Radius | 3.5m | |
| Minimum Ground Clearance | 100mm | |
| Maximum Driving Range | 60km | |
| BODY SYSTEM | Seats | Molded Foam Covered with Leather, Molded Powder-Coated Armrests |
| Vehicle Body | Steel Frame, Blow-Molded Plastic + Copolymer Polypropylene Covers + Ball Holder Bracket | |
| Roof | Steel Frame, Blow-Molded Plastic | |
| Instrument Panel | Blow-Molded Plastic + Copolymer Polypropylene Molding | |
| Front Windshield | ABS + Transparent Engineering Plastic Integrally Stamped and Formed | |
| Rearview Mirrors | Left and Right Adjustable External Rearview Mirrors | |
| Lighting and Signals | Front Lights, Rear Turn Signals, Combined Rear Tail Lights (Position Lights + Brake Lights) | |
| Switches | Start Switch, Combined Lighting Switch, Forward/Reverse Gear Switch | |
| Frame | Steel Frame, Steel Structure Frame | |
| Steering Wheel | Polyurethane Foam Steering Wheel | |
| CHASSIS SYSTEM | Power Transmission System | Continuously Variable Transmission (CVT) System |
| Steering System | Rack and Pinion Steering Gear | |
| Front Axle and Suspension | Integrated Front Axle + Leaf Spring + Damper Shock Absorber | |
| Rear Axle and Suspension | Integral Full-Floating Rear Axle + High-Strength Leaf Spring + Tubular Hydraulic Shock Absorber | |
| Braking System | Rear Wheel Mechanical Drum Brake System, Parking Brake Device | |
| Tires | Professional Golf Turf Tires 205/50-10 |
